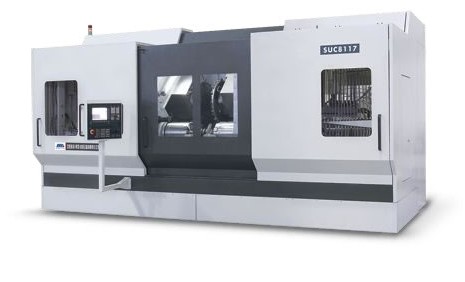

SUC8118曲轴连杆颈车拉系列汽车成套机床 |
| |
|
| >> SUC8118曲轴连杆颈车拉系列Product Preview Keys：
Hits：1248 |
SUC8118 crankshaft connecting rod journal turning and broaching machine is a high accurate, high flexible and high efficient CNC machine designed and developed for machining crankshaft connecting rod journal in automobile industry. It is mainly applied to machining crankshaft connecting rod journal excircle, shaft shoulder, thrust face, round angle or sink ore channel etc. This machine consists of bed, left & right headstocks, right (left & right) longitudinal & cross slides, right (left & right) turrets, inspection system, CNC system, servo system, electrical system, hydraulic system, cooling system, conveyor, lubrication system and guard system etc. |
|
| >> SUC8118曲轴连杆颈车拉系列Technical parameters |
|
Length range of crankshaft to be machined
|
400-800mm
|
|
Max. swing diameter
|
φ300mm
|
|
Max. weight of crankshaft to be machined
|
70kg
|
|
Max. clamping diameter/length of crankshaft flange
|
φ100/50mm
|
|
Max. clamping diameter of crankshaft journal
|
φ85mm
|
|
Width range of crankshaft
|
22-35mm
|
|
Axial positioning type of crankshaft
|
Flange big end positioning
|
|
Half travel range of crankshaft
|
38-50mm
|
|
Length of small head to be machined on main spindle journal
|
100mm
|
|
Spindle speed
|
50-1100rpm
|
|
Main motor power
|
22/33kW
|
|
X1-axis rapid moving speed
|
10m/min
|
|
Z1-axis rapid moving speed
|
12m/min
|
|
W1-axis rapid moving speed
|
12m/min
|
|
Cutterhead diameter
|
φ720mm
|
|
Right cutterhead station
|
45N
|
|
Machine Dimension
|
5000×4500×2900mm
|
|
Machine weight
|
18000kg
|
|
