SUC8117曲轴主轴颈车拉系列汽车成套机床 |
| |
|
| >> SUC8117曲轴主轴颈车拉系列Product Preview Keys：
Hits：1295 |

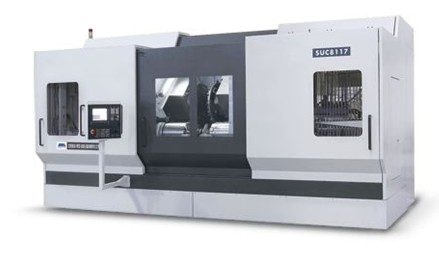

SUC8117 crankshaft journal turning and broaching CNC machine is a high accurate, high flexible and high efficient CNC machine designed and developed for machining crankshaft journal in automobile industry. It is mainly applied to machining crankshaft journal excircle, shaft shoulder, thrust face, round angle or sink ore channel etc. This machine consists of bed, left & right headstocks, left & right longitudinal & cross slides, left & right turrets, left & right programmable center rests, inspection system, CNC system, servo system, electrical system, hydraulic system, cooling system, conveyor, lubrication system, pneumatic system and guard system etc. Feed system consists of three axes, namely X1 and X2-axis; Z1 and Z2-axis; A1 and A2-axis (cutterhead broaching spindle). Turning and broaching processes are performed through the interpolation of X-axis, Z-axis and A-axis. |
|
| >> SUC8117曲轴主轴颈车拉系列Technical parameters |
|
Length range of crankshaft to be machined
|
400-800mm
|
|
Max. swing diameter
|
φ230mm
|
|
Max. weight of crankshaft to be machined
|
70kg
|
|
Max. clamping diameter/length of crankshaft flange
|
φ100/50mm
|
|
Max. clamping diameter of crankshaft journal
|
φ85mm
|
|
Width range of crankshaft
|
22-35mm
|
|
Axial positioning type of
crankshaft
|
Flange big end-face positioning
|
|
Length of small head to be machined on
main spindle journal
|
100
|
|
Spindle speed
|
50-1500
|
|
Main motor power
|
22/33W
|
|
X1,X2-axis rapid moving speed
|
10m/min
|
|
Z1,Z2-axis rapid moving speed
|
12m/min
|
|
W1,W2-axis rapid moving speed
|
12m/min
|
|
Cutterhead diameter
|
φ720mm
|
|
Left cutterhead station
|
45N
|
|
Right cutterhead station
|
45N
|
|
Machine Dimension
|
5000×4500×2900mm
|
|
Machine weight
|
18000kg
|
|
| >> SUC8117曲轴主轴颈车拉系列Machine tool accessories |
|
|
