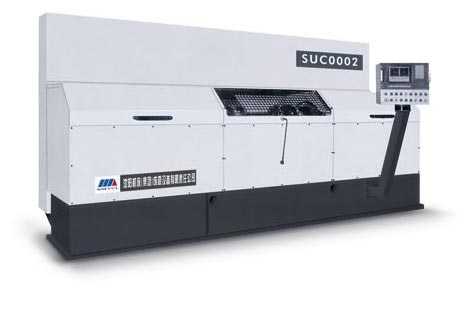

SUC0002曲轴质量定心机系列汽车成套机床 |
|
|
>> SUC0002曲轴质量定心机系列Product Preview Keys:
Hits:1131 |
SUC0002 crankshaft mass centering machine utilizes dynamic balancing principle, through computer measurement control system to find out the central principal axis of inertia (normally called mass central axis) of the crankshaft roughcast and machine center holes on this axis. Mass centering machine can effectively reduce the initial imbalance of the crankshaft machined, thus improve the final balancing accuracy and efficiency of the crankshaft. Reducing initial imbalance is very important to crankshafts with balancing clump weight. Less imbalance means less mass reduced from the balancing clump weight during balancing and alignment, so as to guarantee the internal mass compensation in regard to structure design of the crankshaft. |
|
>> SUC0002曲轴质量定心机系列Technical parameters |
Max. swing diameter of crankshaft
|
φ300mm
|
Diameter range of crankshaft journal
|
φ50-φ140mm
|
Length range of crankshaft
|
550-1250mm
|
Weight range of crankshaft
|
50-160kg
|
Center hole diameter
|
φ4-φ8mm
|
Max. adjustable center distance
|
±5mm
|
Balancing rotation speed
|
300rpm
|
Max. surplus deviation form the center
|
0.06(unsymmetrical crankshaft0.12)mm
|
Cycle time
|
100-180 not include load and unload time sec
|
Main motor power
|
9kW
|
Max. speed of drilling head
|
800rpm
|
Machining material
|
Ductile cast iron, carbon steel, alloy steel
|
Machine power
|
19kW
|
Machine Dimension
|
4140×900×2100mm
|
Machine weight
|
6000kg
|
|
