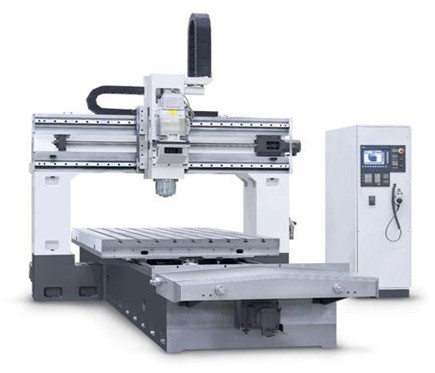

GDC10/12/16系列CNC gantry-type drilling machine |
| |
|
| >> GDC10/12/16系列Product Preview Keys：
Hits：1207 |
GDC series machines are designed with gantry-type frame layout, the column and cross beam are connected fixedly by assembled steel plates. The three axes of the machine are driven by ball screws of high accuracy. X-axis and Y-axis adopt precision linear rollers to maximization satisfy the requirements of drilling.
|
|
| >> GDC10/12/16系列Technical parameters |
|
|
TK6211
TH5211
|
TK6213
TH6213
|
TK6216
TH6216
|
TK6913B
TH6913B
|
TK6916B
|
TK6930×43
|
TK6930×43A
|
|
Dia. of spindle
|
110mm
|
130mm
|
160mm
|
130mm
|
160mm
|
-
|
-
|
|
Taper of spindle
|
ISO 7:24 No50
|
|
Dia. of milling spindle
|
-
|
221.44
|
260
|
221.44
|
260
|
-
|
-
|
|
Speed of spindle
|
10-2000
r/min
|
10-2000
r/min
|
10-1500
r/min
|
10-1500
r/min
|
10-1000
r/min
|
10-2000
r/min
|
10-2000
r/min
|
|
Max. Torque
|
1300N.m
|
2800N.m
|
3500N.m
|
2500N.m
|
3000N.m
|
813N.m
|
813N.m
|
|
Section area of ram
|
-
|
-
|
-
|
480×480mm
|
480×480mm
|
300×430mm
|
300×430mm
|
|
Travel of column(slide)X
|
4000(1000 increase）mm
|
|
Vertical travel of headstock (carrier) Y
|
1500mm
|
1600mm
|
2000(2500
option）mm
|
2000(2500、3000
option）mm
|
2000(2500、3000
option）mm
|
1500mm
|
1500mm
|
|
Travel of ram Z
|
-
|
-
|
-
|
700mm
|
700mm
|
1000mm
|
1000mm
|
|
Headstock swivel angle A
|
-
|
-
|
-
|
-
|
-
|
-
|
±15"
|
|
Column swivel angle B
|
-
|
-
|
-
|
-
|
-
|
-
|
±12"
|
|
Travel of spindle W
|
550mm
|
800mm
|
1000mm
|
700mm
|
700mm
|
-
|
-
|
|
Power of main motor
|
17/22.5kW
|
37/51kW
|
37/51kW
|
37/51k/W
|
37/51kW
|
22/30kW
|
22/30kW
|
|
Cutting feed
|
X、Y、Z
|
X,Y:1-6000mm/min
|
X,Y:1-6000
mm/min
|
X,Y:1-6000
mm/min
|
X,Y:1-6000
mm/min
|
X,Y:1-6000
mm/min
|
X:1-2000
Y:1-6000
Z:1-3000
mm/min
|
X:1-2000
Y:1-6000
Z:1-3000
mm/min
|
|
A、B
|
W:1-2000
r/min
|
W:1-3000
r/min
|
W:1-3000
r/min
|
Z,W:1-3000
r/min
|
Z,W:1-3000
r/min
|
-
|
A,B:0-1.5
r/min
|
|
Rapid traverse
|
X,Y:9 W:2.4m/min
|
X,Y:8 W:3
m/min
|
X,Y:9 W:3
m/min
|
X,Y:6 Z,W:3m/min
|
X,Y:6 Z,W:3 m/min
|
X,Y:10 Z:3.5m/min
|
X,Y:10 Z:3.5m/min
|
|
Magazine capacity
|
40
|
40
|
40
|
40
|
-
|
-
|
-
|
|
Shank specification
|
ISO7:24 JT50
|
|
Pin standard
|
LD50D
|
|
Positioning accuracy
|
|
|
X、Y、Z、W
|
X:0.032
Y,W:0.02mm
|
X:0.035/100
Y:0.020
W:0.02mm
|
X:0.032/
1000
Y:0.026
W:0.02mm
|
X,Y:0.026/
1000
Z,W:0.03/
Length mm
|
X:0.026/
1000
Y,Z,W:
0.026
mm
|
X:±0.015/
4000
Y,Z:±0.01/
Length mm
|
X:±0.015/
4000
Y,Z:±0.01/
Length mm
|
|
A、B
|
-
|
-
|
-
|
-
|
-
|
-
|
±10"sec
|
|
Repeatability
|
|
|
X、Y、Z、W
|
X:0.025
Y,W:0.016
mm
|
X:0.025/
1000
Y:0.020
W:0.018mm
|
X:0.025/
1000
Y:0.020
W:0.018mm
|
0.013/1000
mm
|
X,Y,Z,W:
0.015mm
|
X:±0.008
Y,Z:±0.005
mm
|
X:±0.008
Y,Z:±0.005
mm
|
|
A、B
|
-
|
-
|
-
|
-
|
-
|
-
|
±5"sec
|
|
Overall dimensions of machine (L×W×H)
|
8000×
2993×
4500mm
|
8600×4490
×4830mm
|
9300×5500×
5600mm
|
8400×3200
×5600mm
|
9000×3200
×5600mm
|
7800×3500×4558mm
|
|
Weight of machine
|
28000kg
|
34000kg
|
42000kg
|
31500/
34500kg
|
37000kg
|
28000kg
|
|
Total power capacity
|
50KVA
|
70KVA
|
85KVA
|
85KVA
|
85KVA
|
50KVA
|
|
CNC system
|
SIEMENS 840D
|
|
