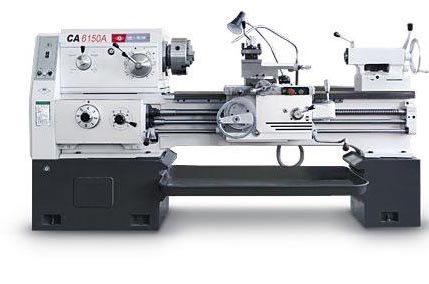

CA6140A
|
CA6240A
|
CA6150A
|
CA6250A
|
CA6161A
|
CA6261A
|
|
Swing over bed
|
400 mm
|
500 mm
|
610 mm
|
|
Swing over carriage
|
210 mm
|
300 mm
|
370 mm
|
|
Swing over gap×Width in gap
|
-
|
630 mmX210 mm
|
-
|
720 mmX210 mm
|
-
|
830 mmX210 mm
|
|
Max. workpiece length/Max. cutting length
|
750/650 mm 1000/900 mm 1500/1400 mm2000/1900 mm
|
|
Distance between spindle center line and plane guide
|
205 mm
|
250 mm
|
305 mm
|
|
Spindle bore/Taper in front of spindle
|
φ52 mm/Morse No.6
|
|
Steps of spindle speed Forward/reverse
|
24/12
|
|
Range of spindle speed
|
Forward
|
50Hz:11-1600r/min 60Hz:12-1680r/min
|
|
|
Reverse
|
50Hz:14-1580r/min 60Hz:16.8-1896r/min
|
|
Range of longitudinal feed(64 kinds)
|
Standard feed0.08-1.59mm/r Standard feed0.028-0.054mm/r
Feed increase0.86-3.16mm/r
|
|
Range of feed(64 kinds)
|
Standard feed0.04-0.79mm/r Standard feed0.014-0.027mm/r
Feed increase0.86-3.16mm/r
|
|
Longitudinal/cross rapid speed
|
Longitudinal4m/min, Transverse2m/min
|
|
Cutting range of thread
|
44 metric thread 1-192mm Modulus Thread 390.25-48mm British Thread 212-24Dental / inch Drive Festival Thread 371-96
|
|
Max. travel of top & lower slide
|
140mm/320mm
|
140mm/420mm
|
|
Rotating angle of turret
|
±90°
|
|
Distance between spindle center line and supporting surface of tooling
|
26 mm
|
|
Sectional size of shank
|
25mm×25mm
|
|
Diameter & travel of sleeve of tailstock; Taper of sleeve bore
|
75mm×150mm Morse No.5
|
|
Pitch of leadscrew
|
12mm
|
|
Power of main motor
|
7.5 kW
|
|
Net weight (Approximately)
|
750mm
|
1990 kg
|
2060 kg
|
2180 kg
|
|
1000mm
|
2070 kg
|
2140 kg
|
2260 kg
|
|
1500mm
|
2220 kg
|
2290 kg
|
2437 kg
|
|
2000mm
|
2570 kg
|
2640 kg
|
2787 kg
|
|
Dimensions(L×W×H)
|
750mm
|
2418×1000×1267 mm
|
2418×1037×1312 mm
|
2418×1130×1367 mm
|
|
1000mm
|
2668×1000×1267 mm
|
2668×1037×1312 mm
|
2668×1130×1367 mm
|
|
1500mm
|
3168×1000×1267 mm
|
3168×1037×1312 mm
|
3168×1130×1367 mm
|
|
2000mm
|
3668×1000×1267 mm
|
3668×1037×1312 mm
|
3668×1130×1367 mm
|
