TPX6113系列horizontal milling and boring machine |
| |
|
| >> TPX6113系列Product Preview Keys：
Hits：3884 |

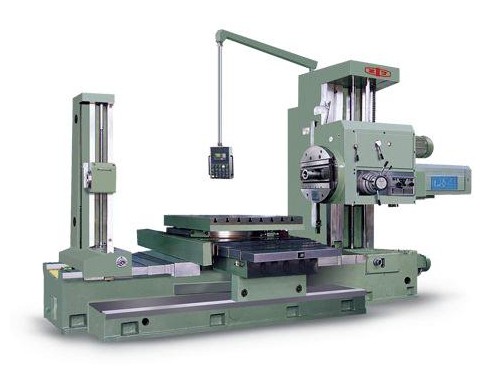

Horizontal milling and boring machine model TPX6113 is applicable for boring, milling, threading, etc. on large size box-type parts. |
|
| >> TPX6113系列Technical parameters |
|
|
TPX6113
|
TPX6113/2
|
|
Boring spindle diameter
|
130mm
|
|
Spindle taper
|
Metric 80（optionalISO 7：24 No50)
|
|
Max. spindle torque
|
3136N.m
|
|
Max. facing head torque
|
4900N.m
|
|
Max. spindle thrust
|
31360N
|
|
Max. traverse of boring spindle
|
900mm
|
|
Number of spindle speed
|
24
|
|
Range of spindle speed
|
4-800r/min
|
|
Travel of facing slide
|
250mm
|
|
Table working surface
|
1600×1400mm
|
1800×1600mm
|
|
Max. permissible load on table
|
8000mm
|
10000mm
|
|
Distance between spindle axis and table surface
|
Max.
|
1400mm
|
1800mm
|
|
Min.
|
0
|
0
|
|
Table travel
|
longitudinal
|
1500mm
|
2000(Not bring column ）
|
|
Transverse
|
1600mm
|
2000mm
|
|
Transverse rapid for spindle, headstock, worktable
|
2500mm
|
2500mm
|
|
Range of spindle, headstock and table feeds per spindle revolution
|
0.05-8/0.01-2mm/r
|
0.05-8/0.01-2mm/r
|
|
Feed range of spindle, headstock, worktable, radial slide
|
-
|
-
|
|
Power of main drive motor
|
15kW
|
|
Overall dimensions(L×W×H)
|
6995mm
3647mm
3442mm
|
7030mm
4665mm
3800mm
|
|
Weight of machine
|
24500kg
|
29300kg
|
|
