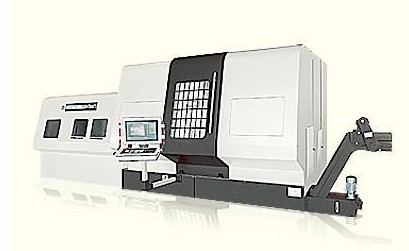

HTM40/80系列Turning & Milling Center |
| |
|
| >> HTM40/80系列Product Preview Keys：
Hits：1121 |
The machine was produced under the extraction from the abroad advanced technology, in one set-up, it can finish the full machining of the crankshaft with turning、milling、boring、 tapping etc. It has the unique advantage with high efficiency、 high flexible. It is select equipment for the industries of military、 aerospace and aviation as well as transportation and communication. |
|
| >> HTM40/80系列Technical parameters |
|
|
HTM40
|
HTM80
|
HTM80sub
|
|
Capacity
|
Rotary Drive possession bed
|
φ600mm
|
φ900mm
|
φ1000mm
|
|
On spiral slide Drive
|
φ500mm
|
φ700mm
|
φ900mm
|
|
Turning diameter of the largest
|
φ400mm
|
φ800mm
|
φ800mm
|
|
The greatest length of processing
|
1000/1500/2000/3000/4000/6000mm
|
|
Trip
|
X axis trip
|
460mm
|
670mm
|
750mm
|
|
Y axis trip
|
-100/+150mm
|
-200/+300mm
|
-200/+300mm
|
|
Z axis trip
|
1100/210/3200/4100/6100mm
|
|
B axis trip
|
-100°/+100°
|
|
C axis trip
|
360°
|
|
Vice spindle trip
|
|
|
1500(Z:1500)mm
|
|
Spindle
|
Chuck size
|
8"
|
8"
|
8"
|
|
Maximum speed
|
4000rpm
|
2800rpm
|
2000rpm
|
|
Spindle end
|
A2-6
|
A2-11
|
A2-11
|
|
Spindle Path
|
65mm
|
100mm
|
100mm
|
|
Power(S1-S6）
|
22/30kW
|
37/56kW
|
37/56kW
|
|
C-axis
|
Torque（S1-S6）
|
430/649Nm
|
1070/1400Nm
|
1743/2250Nm
|
|
Indexing the minimum angle
|
0.001°
|
|
Maximum Speed
|
20rpm
|
|
Vice Spindle
|
Chuck size
|
|
|
15"mm
|
|
Maximum speed spindle
|
|
|
2000rpm
|
|
Spindle end
|
|
|
A2-11
|
|
Spindle Path
|
|
|
70mm
|
|
Power（S1-S6）
|
|
|
28/42kW
|
|
Under C -
|
Indexing the minimum angle
|
0.001
|
|
Maximum Speed
|
20rpm
|
|
Axis milling
|
Power（S1-S6）
|
12/18.5kW
|
17/25kW
|
17/25kW
|
|
Maximum Speed
|
5000rpm
|
4000rpm
|
4000rpm
|
|
B-axis
|
Maximum Speed
|
26rpm
|
20rpm
|
30rpm
|
|
Indexing angle
|
5°Or arbitrary angle
|
|
Indexing the minimum angle
|
0.001°
|
|
Tailstock
|
Sleeve trip
|
150mm
|
200mm
|
200mm
|
|
Top
|
MT5
|
MT5
|
MT6
|
|
Automatic tool replacement deviceATC
|
HANDLE form
|
CAPTO C5/HSKA63
|
CAPTO C6/HSKA80
|
CAPTO C6/C8/HSKA100
|
|
Cutter diameter
|
100mm
|
125mm
|
125mm
|
|
Tool Storage Capacity
|
12/24/32/48/96Spaces
|
|
Required power sources
|
Power
|
380V 50HZ
|
|
Air-source
|
5-8bar 500L/min
|
|
Size machines
|
High
|
2.5m
|
3m
|
3.3m
|
|
Machine Tool（L×W）
|
5.1×2.8(Z:1000)m
|
8.6×3.5(Z:2000)m
|
6.9×3.3(Z:1500)
|
|
Weight
|
17T(Z:1000)
|
23T(Z:2000)
|
31T(Z:1500)
|
|
