TPX6111B/C系列horizontal milling and boring machine |
| |
|
| >> TPX6111B/C系列Product Preview Keys：
Hits：4480 |

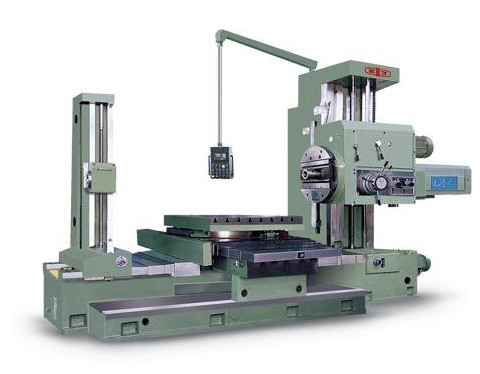

Horizontal milling & boring machine model TPX6111B is newly developed standard products on the base of over 50 years of experience, with the absorption of cream technology from home and abroad products, and with perfect properties. |
|
| >> TPX6111B/C系列Technical parameters |
|
|
TPX6111B
|
TPX6111B/2
|
TPX6111B/3
|
TPX6111C/3
|
|
Boring spindle diameter
|
110mm
|
|
Spindle taper
|
Morse No6(optionalISO 7：24 No50)
|
ISO 7:24No50
|
|
Max. spindle torque
|
1225N.m
|
1250N.m
|
|
Max. facing head torque
|
1960N.m
|
1960N.m
|
|
Max. spindle thrust
|
12250N
|
|
Max. traverse of boring spindle
|
600mm
|
|
Number of spindle speed
|
22
|
Stepless
|
|
Range of spindle speed
|
8-1000r/min
|
8-1100r/min
|
|
Travel of facing slide
|
180mm
|
|
Table working surface
|
1100×960mm
|
1100×960mm
|
1250×1100mm
|
1250×1100mm
|
|
Max. permissible load on table
|
2500kg
|
2500kg
|
3000kg
|
3000kg
|
|
Distance between spindle axis and table surface
|
Max.
|
900mm
|
900mm
|
1200mm
|
1200mm
|
|
Min.
|
0
|
0
|
0
|
0
|
|
Table travel
|
longitudinal
|
1000mm
|
1000mm
|
1400(Not bring column ）mm
|
1400(Not bring column ）mm
|
|
Transverse
|
900mm
|
1250mm
|
1600mm
|
1600mm
|
|
Transverse rapid for spindle, headstock, worktable
|
2500mm/min
|
2500mm/min
|
2500mm/min
|
2500mm/min
|
|
Range of spindle, headstock and table feeds per spindle revolution
|
0.04-6/0.01-1.88mm/r
|
-
|
|
Feed range of spindle, headstock, worktable, radial slide
|
-
|
-
|
-
|
0.32-2500
|
|
Power of main drive motor
|
7.5kW
|
15kW
|
|
Overall dimensions(L×W×H)
|
4910mm
2454mm
2750mm
|
4910mm
2870mm
2750mm
|
5120mm
3380mm
3100mm
|
5120mm
3380mm
3100mm
|
|
Weight of machine
|
13000kg
|
14500kg
|
18000kg
|
18000kg
|
|
