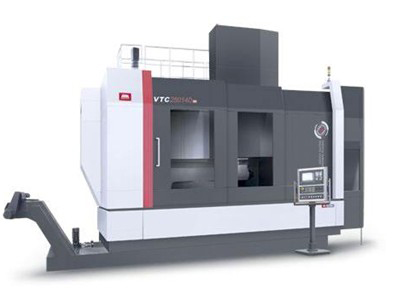

VERTIMASTER 2-8系列Vertical Turning & Milling Center

>> VERTIMASTER 2-8系列Product Preview  Keys:  Hits:5765

Our large machining centers of the VERTIMASTER 2-8-series are among the biggest and most modern machine tools in the world. These CNC Turning and Milling Centers in Table and Gantry design can be adopted to all the specific machining requirements of our customers. Each required combination in the machining processes turning, milling, drilling and boring with linear and circular axes is possible, Grinding and threading with reliable attachments in one setting according to the customer's requirement and in various degrees of automation are part of our portal machine concepts as well.

>> VERTIMASTER 2-8系列Technical parameters

Size

2

3

4

5

6

7

8

Table width/diameter

2500mm

3000mm

4000mm

5000mm

6000mm

7000mm

8000*

X-sroke







2000-20000*mm







Ram allocation















340×280

http://www.syms.com.cn/images/tiao.gif











420×370

http://www.syms.com.cn/images/tiao.gif









520×460

http://www.syms.com.cn/images/tiao.gif







φ560





http://www.syms.com.cn/images/tiao.gif

Ram dimension

340×280mm

420×370mm

520×460mm

φ560
640×570mm

Power

52kW

63kW

72kW

90kW

Torque

2400N.m

3000N.m

6000N.m

9000N.m

Spindle speed

3000rpm

3000rpm

3000rpm

3000rpm

Max.ram stroke for milling

1600mm

1600mm

2000mm

3000mm

Integrated C-axis



There

There

There
