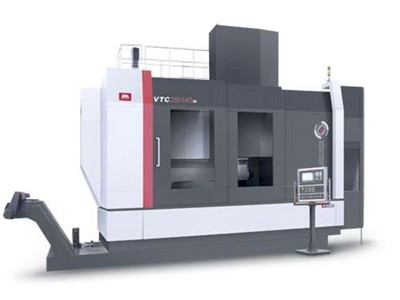

VERTIMASTER1系列Vertical Turning & Milling Center |
| |
|
| >> VERTIMASTER1系列Product Preview Keys：
Hits：5456 |
With the VERTIMASTER series, we have designed a reliable, powerful and universal CNC-machining center. The turning, boring and milling technological processes can be carried out in one setting. This machine design is characterized by its economic efficiency and especially its fiexibility. It offers the user a remarkable shorter machining of workpieces by reducing the transportation, clamping, alignment and setting-up times. |
|
| >> VERTIMASTER1系列Technical parameters |
|
Turning table diameter
|
1000/1120mm
|
1250/1400mm
|
1600/1800mm
|
2000/2250mm
|
2500/2800mm
|
|
Table width for VMT 1
|
-
|
1250mm
|
1600mm
|
2000mm
|
2500mm
|
|
Max.turning diameter
|
1600mm
|
1600mm
|
2000mm
|
2500mm
|
3200mm
|
|
Max.column passage
|
1000mm
|
1400mm
|
1800mm
|
2350mm
|
3000mm
|
|
Max.turning height
|
1000mm
|
1600mm
|
2000mm
|
2500mm
|
2500mm
|
|
Max.workpiece weight
|
8000kg
|
10000kg
|
15000kg
|
20000kg
|
25000kg
|
|
Main motor power
|
110kW
|
110kW
|
110kW
|
110kW
|
110kW
|
|
Max.turning table speed
|
500rpm
|
335rpm
|
265rpm
|
212rpm
|
180rpm
|
|
Ram dimension
|
280×240mm
|
280×240mm
|
280×240mm
|
280×240mm
|
280×240mm
|
|
Ram stroke
|
1400/1600mm
|
1400/1600mm
|
1400/1600mm
|
1400/1600mm
|
1400/1600mm
|
|
Max.speed of drilling/milling drive
|
3000rpm
|
3000rpm
|
3000rpm
|
3000rpm
|
3000rpm
|
|
Power of drilling/milling drive
|
52kW
|
52kW
|
52kW
|
52kW
|
52kW
|
|
Table length
|
2000-6000mm
|
2000-6000mm
|
2000-6000mm
|
2000-6000mm
|
2000-6000mm
|
|
