STC34
series
|
STC22/24
series
|
STC1835
series
|
STC1135
series
|

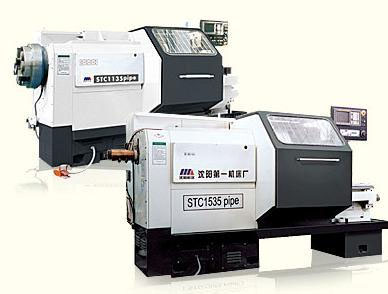

STC1535
series
|
STC1450
series
|
|
Guide to the center axis height
|
450mm
|
400mm
|
315mm
|
315mm
|
315mm
|
420mm
|
|
Processing pipe diameter range
|
Electric Chuck
|
114-340mm
|
60-219mm
|
-
|
-
|
-
|
|
|
Hydraulic Chuck
|
114-340mm
|
73-245mm
|
-
|
-
|
73-156
|
|
|
Pneumatic Chuck
|
-
|
-
|
60-180mm
|
60-114mm
|
-
|
73-140mm
|
|
Turning the greatest length
|
1000 3000mm
|
1000mm
|
350mm
|
350mm
|
110-203mm
|
500mm
|
|
Spindle Speed Series
|
General Motors
|
12
|
12
|
★ 8
|
★ 8
|
|
Stepless(DC)
|
|
Main servo
|
|
|
▲ Stepless
|
▲ Stepless
|
Stepless
|
|
|
Spindle speed range
|
General Motors
|
7-310rpm
|
Hydraulic Chuck:9-408
Electric Chuck
:8-306
|
★90-605rpm
|
★97-605rpm
|
|
90-906rpm
|
|
Main servo
|
|
|
▲90-610rpm
|
▲90-660rpm
|
90-650rpm
|
|
|
Main Motor Power
|
General Motors
|
18.5kW
|
18.5kW
|
★9/11kW
|
★9/11kW
|
|
|
|
Main servo
|
|
|
▲15/18.5kW
|
▲15/18.5kW
|
15kW
|
54(DC)
|
|
Spindle aperture
|
355mm
|
Hydraulic Chuck:
260mm
Electric Chuck:
240mm
|
205mm
|
120mm
|
104mm
|
160mm
|
|
Chuck form
|
Electric Chuck
|
★
|
★
|
-
|
-
|
-
|
|
|
Hydraulic Chuck
|
▲
|
▲
|
-
|
-
|
Chuck overturned ★
|
|
|
Pneumatic Chuck
|
-
|
-
|
★
|
★
|
-
|
★
|
|
Carrier forms
|
Vertical Position
4
|
Vertical Position
4
|
Vertical Position
4
|
Vertical Position
4
|
Vertical Position
4
|
8 Horizontal Position
|
|
Arbor section
|
40×40mm
|
40×40mm
|
40×40mm
|
40×40mm
|
40×40mm
|
40×50mm
|
|
Carrier transfer time (a)
|
3s
|
3s
|
3s
|
3s
|
3.7s
|
1.8/3.8s
|
|
IM Express carrier
|
4/8m/min
|
3/8m/min
|
4/8m/min
|
4/8min
|
4/8min
|
10/10m/min
|
|
Carrier transfer repetitive positioning accuracy
|
±0.003mm
|
±0.003mm
|
±0.003mm
|
±0.003mm
|
0.01mm
|
0.006mm
|
|
Accuracy of the workpiece
|
IT7
|
IT7
|
IT7
|
IT
|
IT
|
IT6
|
|
Workpiece surface roughness
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
|
Tailstock diameter sleeve
|
100mm
|
100mm
|
-
|
-
|
-
|
|
|
Tailstock sleeve trip
|
250mm
|
250mm
|
-
|
-
|
-
|
|
|
Machine weight
|
9000kg
|
8500kg
|
6000kg
|
6000kg
|
6000kg
|
15000kg
|
|
Machine dimension
|
3785×2088
×2020mm
|
3785×2088
×1870mm
|
3070×1690
1740mm
|
3070×1690
×1740mm
|
3240×1663
×1740mm
|
5100×2365
×2100mm
|
