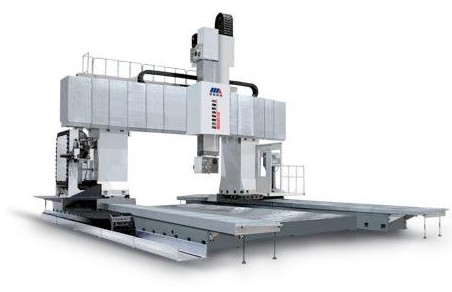

GMC40X(80/120)系列gantry-type machine center 2 |
| |
|
| >> GMC40X(80/120)系列Product Preview Keys：
Hits：1212 |
Gear-driven main motion of gantry-type machining centers have characteristics of high rigidity and large torque. Fixed bridge provides good stiffness. Two kinds of square ram dimensions are used for standard supply i.e. square ram with section area of 350×350mm and that of 420×470mm. The ram is intergrated into headstock with long travel guiding inside, its motion has been balanced all the time under help of hydraulic oil cylinder to obtain small kinetic inertia, flexiable movement and good stability.
|
|
| >> GMC40X(80/120)系列Technical parameters |
|
|
THA57400×800
TKA57400×800
|
THA57400×1200
TKA57400×1200
|
|
Worktable size
|
4000×8000Fixed platforms mm
|
4000×12000Fixed platforms mm
|
|
Max. load on the table
|
5000/m kg
|
|
Travel of pallet X
|
Column action8800 mm
|
Column action12800 mm
|
|
Travel of Y
|
5000+400（ATC）mm
|
|
Vertical travel of quill Z
|
1000 mm
|
|
B, C
|
360°/5°
|
|
Spindle speed
|
10-2000 r/min
|
|
Power of main motor
|
30/37 kW
|
|
Max. spindle torque
|
1437/1773 N.m
|
|
Distance of spindle axis to table surface
Cutting feed X, Y, Z
|
600-1600 mm
|
|
Rapid traverse X, Y, Z
|
1-5000
|
|
Magazine capacity
|
X,Y:13 Z:10 mm/min
|
|
Tool selection
|
40 m/min
|
|
Shank specification
|
Arbitrary Put
|
|
Specification
|
ISO 7388/1-A
|
|
Max. tool length diameter
|
DIN69872LD50D
|
|
Max. tool weight
|
400/125 mm
|
|
Tool change time (T-T)
|
20 kg
|
|
Positioning accuracy X, Y, Z
|
5.5 s
|
|
Repeatability X, Y, Z
|
X,Y:0.05 Z:0.03 mm
|
|
|
X,Y:0.02 Z:0.015 mm
|
|
Weight of machine
|
100000/98250 kg
|
130000/128500 kg
|
|
Width of portal-type
|
4600 mm
|
|
Vertical travel
|
420×470
|
|
Overall dimensions of machine
|
15923×8991×6902 mm
|
19923×8991×6902 mm
|
|
Total power capacity
|
100 KVA
|
|
CNC system
|
FANUC 18i
|
|
