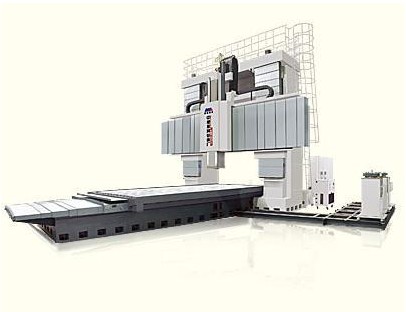

GMB2560wr系列gantry-type machine center 1 |
|
|
>> GMB2560wr系列Product Preview Keys:
Hits:1284 |
The spindle box adopt square ram. The Z-axis is four-face closed encircling sliding guide way. The guide way is cast iron bonding Turcite-B with better vibration damping to afford steady machining. It is especially suitable for spindle extension to make heavy milling, boring large holes and five-face machining with angular head. The inserted steel guideway realize anti-bending and anti-torsion of beam. The spindle saddle moving parts have guide way unload mechanism to reduce the sliding friction and benefit to increase the positioning accuracy.
|
|
>> GMB2560wr系列Technical parameters |
Worktable
|
Worktable size
|
2500×6000mm
|
Max. Load capacity
|
20000kg
|
T-slot
|
28×11mm×N
|
Machining range
|
Gantry width
|
3200mm
|
Worktable travel (X-axis)
|
6200mm
|
Saddle travel(Y-axis)
|
3200mm
|
Ram travel (Z-axis)
|
1500mm
|
Crossrail travel(W-axis)
|
1500mm
|
Max.distance from spindle nose to table surface
|
2500mm
|
Spindle
|
Taper hole in spindle(7:24)
|
ISO50
|
Range of spindle speed
|
20-2000r/min
|
Max. Spindle torque
|
2050/2830N.m
|
Power of main motor
|
37/51kW
|
Section area size of square ram
|
500×500mm
|
Feed
|
Cutting feed speed range
|
1-5000mm/min
|
Rapid travel
|
X-axis
|
8m/min
|
Y-axis
|
8m/min
|
Z-axis
|
8m/min
|
W-axis
|
4m/min
|
Positioning accuracy
|
According to standard
(GB/T19362.1-2003)
|
X-axis
|
0.025mm
|
Y-axis
|
0.020mm
|
Z-axis
|
0.015mm
|
W-axis
|
0.015mm
|
Repeatability
|
According to standard
(GB/T19362.1-2003)
|
X-axis
|
0.020mm
|
Y-axis
|
0.014mm
|
Z-axis
|
0.010mm
|
W-axis
|
0.010mm
|
Machine oversize
|
Dimension of machine
|
16625×7200×8553mm
|
Weight of machine
|
160t
|
CNC Control system
|
Siemens840D
|
|
