HMC40/50/63/80系列horizontal machining center |
|
|
>> HMC40/50/63/80系列Product Preview Keys:
Hits:5004 |

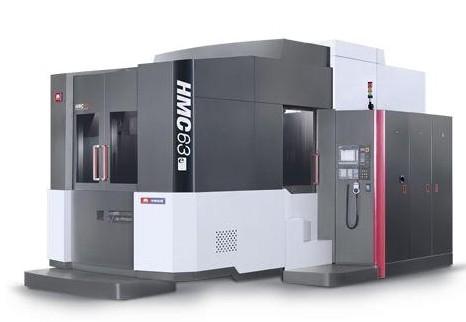

Main motion of CNC horizontal machining centers is driven by gears transmission system via two-step speed change to increase torque of spindle. The bearings of spindle adopt imported bearings to provide the spindle with high speed and good rigidity. Machines with higher speed of spindle are supplied with cooling cycle unit to control spindle temperature. Two kinds of rotary worktable are available for selecting i.e. indexing rotary worktable and NC rotary worktable. The NC rotary worktable adopts angular encoder for direct measurement with characteristic of high accuracy. The double exchanging pallet is supplied for standard configurations to accompolish auto exchanging of pallet, resulting in reducing assistant time and increasing efficiency. The machine is equipped with square-type harden guide-ways to ensure high stiffness and long service time of the machine, and linear rollers of high rigidity are provided for higher speed travel. Machines of this series have perfect functions with steady accuracy, suitable for machining all kinds of box-type work-pieces and two-dimension or three-dimension curved surfaces. Thus they are key equipments for the industries of machine, automobile, shipping, textile and press mechanism, agriculture machinery etc. |
|
>> HMC40/50/63/80系列Technical parameters |
|
TH6540×40A
|
TH6550×50
|
table
|
Table working area
|
400×400mm
|
500×500mm
|
Number of pallet changers
|
double
|
double
|
Max. load on the table
|
8s
|
8s
|
Did. Bearing of spindle
|
400kg
|
500kg
|
|
Spindle taper
|
ISO7:24 No50
|
Spindle speeds
|
11/15kW
|
Max. spindle torque
|
20-5000r/min
|
Distance between spindle axis and table surface
|
376N.m
|
Min. distance between spindle nose and table center
|
7000N
|
Spindle working range
|
Max. travel of column
|
X
|
Mobile Column700mm
|
Max. travel of headstock
|
Y
|
650mm
|
Max. travel of worktable
|
Z
|
Mobile workstations600mm
|
Rotation of table
|
B
|
1°×360
|
|
Distance between spindle axis and table surface
|
50-700mm
|
Min.distance between spindle nose and table center
|
200mm
|
Travesrse speeds
|
Cuting feed
|
X,Y,Z
|
1-10000
|
W
|
-
|
Rapid speed
|
24m/min
|
Table feed
|
-
|
Automatic tool changer
|
Magazine capacly/Tool selection
|
40/Sentinel piece
|
Shank specification
|
ISO7:24JT50
|
Max.tool weight
|
25kg
|
Max.tool length/diameter
|
400/φ125mm
|
Tool change time
|
9s
|
Max.tool diameter when adjacent packet empty
|
250mm
|
Positioning accuracy
|
X,Y,Z
|
±0.005mm
|
B(4×90°)
|
±5"(±2")mm
|
Repeatability
|
X,Y,Z
|
±0.003mm
|
B(4×90°)
|
±2"mm
|
Installation data
|
Power source
|
50/380Hz/V
|
Total power capacity
|
55KVA
|
Net weght of machine (apprax)
|
17470kg
|
Floor space
|
4790×4600mm
|
Dimensions of machine
|
4790×3852×3048mm
|
CNC system
|
FANUC 0i-MC(FANUC 18i,SIEMENS840D)
|
|
>> HMC40/50/63/80系列Machine tool accessories |
|
|
