SUC8110键槽铣机床系列专用数控机床 |
| |
|
| >> SUC8110键槽铣机床系列Product Preview Keys：
Hits：1462 |

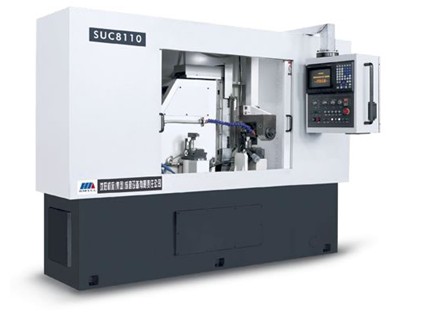

SUC8110 is a CNC special purpose machine designed and manufactured for automobile engine factories for machining key slots of camshafts. The special purpose machine consists of base, column, CNC slide, milling head, clamping device, angular positioning, hydraulic system, pneumatic system, cooling system, lubrication system, tools and auxiliaries, electrical system and machine guard etc. |
|
| >> SUC8110键槽铣机床系列Technical parameters |
|
Height between load and unload centers
|
1060mm
|
|
Spindle speed
|
379r/min
|
|
Travel of slide
|
200mm
|
|
Feed speed of slide
|
120mm/min
|
|
Rapid moving speed of slide
|
6m/min
|
|
Repeat positioning accuracy of slide
|
0.01mm
|
|
Max. travel of oil tank with clamping device
|
50mm
|
|
Spindle taper
|
BT40
|
|
Machine power
|
8.5kW
|
|
Machine gross weight
|
3500kg
|
|
Floor space
|
2400×2000mm
|
|
