SUC8109凸轮轴组合加工机床系列专用数控机床 |
| |
|
| >> SUC8109凸轮轴组合加工机床系列Product Preview Keys：
Hits：1386 |

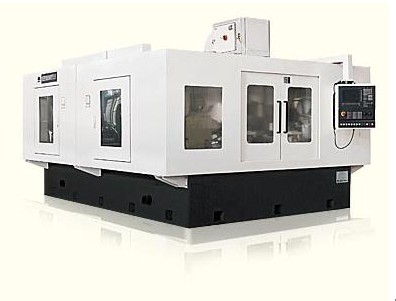

SUC8109 double-face horizontal five-station CNC combined machine for counterboring and reaming center holes of camshafts, tapping, deburring and blowing, adopts feed mechanism of one station up for loading and five stations down for unloading. |
|
| >> SUC8109凸轮轴组合加工机床系列Technical parameters |
|
Work-piece length range
|
450-1000mm
|
|
Work-piece diameter range
|
φ40-φ70mm
|
|
Counterboring spindle taper
|
BT40
|
|
Tapping spindle taper
|
BT40
|
|
Max. travel of cross CNC slide
|
350mm
|
|
Travel of longitudinal feed
|
850mm
|
|
Loading height
|
1250mm
|
|
Machine power
|
20kW
|
|
Machine Dimension
|
3600×4500×2140mm
|
|
Machine weight
|
18000kg
|
|
| >> SUC8109凸轮轴组合加工机床系列Machine tool accessories |
|
|
